Used Dener Puma XL 40×220 For Sale

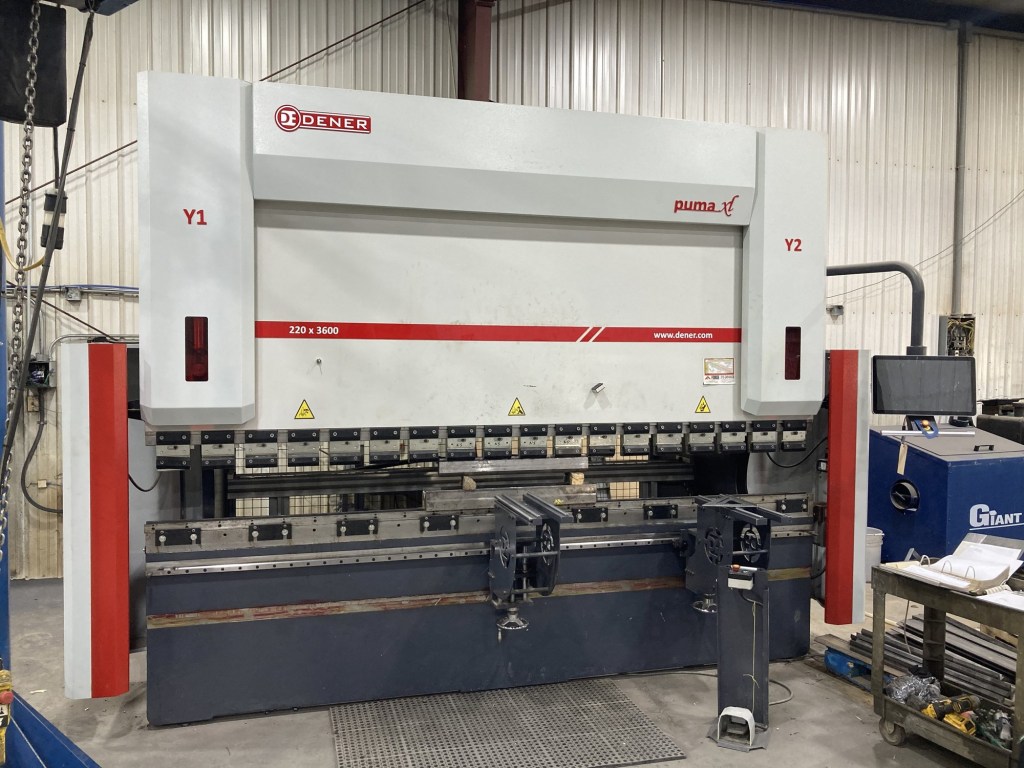

For sale is a Dener Puma XL press brake, which is just over a year old and in excellent working condition. This machine has a capacity of 4 meters x 242 US Tons, making it ideal for handling larger metal fabrication jobs. It is equipped with a 4-axis back gauge, ESA 675 control, and laser finger safety, ensuring accurate and safe operation.

The Dener Puma XL press brake is also equipped with Y1, Y2, X, R, Z1, and Z2 axes, allowing for precise and efficient bending of metal sheets. The ESA 675 control system provides a user-friendly interface for easy operation and program storage, making it an ideal choice for metal fabrication shops looking to improve their productivity and efficiency.

In addition to its impressive capacity and advanced features, the Dener Puma XL press brake also comes equipped with an oil cooler, motorized crowning, and DSP laser finger safety. The motorized crowning system ensures precise and consistent bending, while the DSP laser finger safety provides an additional layer of protection for the operator.

Overall, the Dener Puma XL press brake is an excellent choice for any metal fabrication shop looking to add or upgrade their press brake equipment. With its large capacity, advanced features, and reliable performance, this machine will provide years of efficient and accurate metal bending. Contact us today to learn more about this machine and to schedule a viewing.

• Ram Repeatability ± 0.0004 Inch ± 0.01mm
• Approach Speed Max. 5.5 IPS 140 mm/s
• Bend Speed Max. 0.4 IPS 10 mm/s
• Return Speed Max. 5.1 IPS 130 mm/s
• Punch holder Height 4.72 Inch 120 mm
• Back Gauge Speed 295 IPM 125 mm/s
• Back Gauge Repeat Accuracy 0.002” 0.05 mm
• Back Gauge X Travel 25.6 Inch 650 mm
• Back Gauge max gauge point 36 Inch 915mm
• R Axis Travel (Motorized optional) 9.8 Inch 250 mm
• Bending Length 143.7 Inch 3650 mm
• Distance Between Frames 122 Inch 3100 mm
• Ram Stroke 13.8 Inch 350 mm
• Daylight w/o punch holders 25.59 Inch 650 mm
• Throat Depth 17.7 Inch 450 mm
• Table Height 36.22 Inch 920 mm
• Table Width 3.74 Inch 95 mm
• Weight 27,500 lb 12,500 kg
• Oil Capacity 75 Gallon 300 Liter
